4sevens Li-Ionen Ladegerät
(das reine Ladegerät für den angegeben Preis- mit Akkus dann gegen Aufpreis)

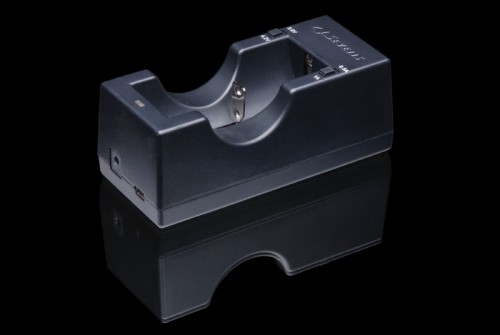

This is our own single-bay smart charger. It has a constant-current, constant-voltage (CC/CV) circuit. This means it will maintain a constant current to the battery until the terminating voltage (user selectable) is reached, then it will maintain a constant voltage; thus, the current is naturally reduced as the voltage approaches the terminating voltage. Our charger also offers USB charging with the included USB/MiniUSB adapter!   Charger Specifications   Two user-selectable voltage settings: 3.6V 4.2V Two user-selectable current settings: 0.5A 1.0A Compatible with the following battery sizes: 10440 14500 16340 (RCR123A) 17670 18500 18650 26650 Primary Input Voltage: 12.0V, 1A Secondary (USB) Input Voltage: 5.0V, 500mA Wall/outlet Power Supply Input Voltage: 100-240VAC Output Voltage: 3.6V~4.2V, 500mA~1000mA Included adapters: wall/outlet power supply, car accessory port adapter, and USB-to-MiniUSB adapter Operation Achtung: dieser Lader ist nur geeignet protected (geschützte) Akkus zu laden. Always insert batteries into the charger with the positive terminal facing toward the "4Sevens" logo! Incorrectly inserting the battery is dangerous and may cause personal injury!  Plug the adapter into the appropriate outlet (wall / car / LED). Both the car adapter and the wall outlet power supply have a red LED that illuminates when the adapter is properly plugged in. Plug the adapter into the appropriate port on the charger (primary or miniUSB). The LED at the base of the charger will illuminate GREEN if properly plugged in and no battery is inserted. Select the charging settings appropriate for your battery (for example, lithium-ion batteries generally require 4.2V, and either 0.5A or 1.0A) Insert rechargeable battery with the positive terminal facing toward the 4Sevens logo on the charger. This is very important! Double-check your battery orientation before inserting it into the charger. The LED at the base of the charger will illuminate RED when the battery is properly inserted and has begun to recharge. If the LED does not turn red, ensure the battery is properly oriented (positive terminal facing the 4Sevens logo) and fitted securely against the charger's holding tabs. The LED at the base of the charger will illuminate GREEN when the battery has completed charging.



---





Batterien und Akkus gehören nicht in den Hausmüll. Als Verbraucher sind Sie gesetzlich verpflichtet, gebrauchte Batterien und Akkus zurückzugeben. Sie können Ihre alten Batterien und Akkus bei den öffentlichen Sammelstellen in Ihrer Gemeinde oder überall dort abgeben, wo Batterien und Akkus der betreffenden Art verkauft werden. Sie können Ihre Batterien auch im Versand unentgeltlich zurückgeben. Falls Sie von der zuletzt genannten Möglichkeit Gebrauch machen wollen, schicken Sie Ihre alten Batterien und Akkus bitte ausreichend frankiert an unsere Adresse. Diese Zeichen finden Sie auf schadstoffhaltigen Batterien und Akkus:

Pb = Batterie/Akku enthält Blei Cd = Batterie/Akku enthält Cadmium Hg = Batterie/Akku enthält Quecksilber
