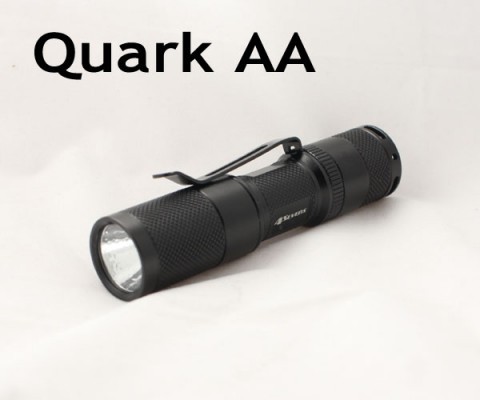

4sevens quark AA tactical

Main Features

Power: One AA Battery (0.9V~4.2V)
LED Emitter: Premium Cree XP-G R5

Output: Maximum - 106 lumens; Moonlight - 0.2 lumens
Runtime: Maximum - 1.2 hours; Moonlight - 10 days
Strobe: Strobe, S.O.S., and Beacon flash modes

Specifications

Dimensions

Length: 96mm Diameter: 22mm Weight: 51g

Typical Output and Runtimes

Moonlight: 0.2 lumens, 10 days
Low: 4 lumens, 2 days
Medium: 22 lumens, 6 hours
High: 85 lumens, 1.5 hours
Max: 106 lumens, 1.2 hours
Strobe, 2.5 hours
Beacon, 18 hours

Operation

 Operating your Quark Tactical is simple. Insert the battery with the positive side (+) towards the head. Make sure the head and tailcap are tightened, then depress the tailcap button fully so that it "clicks" and the light turns on. You can also press the tailcap lightly (you don't have to "click" it on) to activate the light momentarily. This is known as the momentary-on feature.

The Quark Tactical can memorize any two modes of output, from its eight total modes, to be instantly available. These two memorized modes are accessed by either tightening or loosening the head (for example, tight can be Max, and loose can be Low).

Programming Modes:

To have your Quark Tactical memorize a different mode, turn it on and loosen the head by a half-turn. Then, tighten the head at least four times rapidly (twisting it tight, then loose, then tight, etc., four times). After the fourth time, leave the head tight or loose depending which position you want to program.

After three seconds, the light will flash, signaling it is ready to be programmed. Cycle through the eight available modes by clicking the tailcap off and on. The mode sequence is as follows:
Moonlight » Low » Medium » High » Max » SOS » Strobe » Beacon

Once you find your desired mode, leave that mode on for ten seconds and the light will flash again, confirming that the mode has been memorized. To cancel programming before it flashes, turn the light off for three seconds.

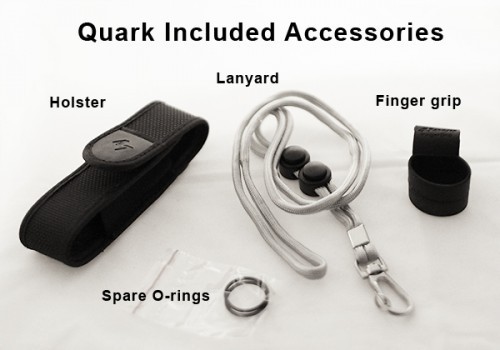

Verpackung und Lieferumfang als Video!
