4sevens quark AA² regular mit R5 LED
Main Features
Power: Two AA Batteries (0.9V~4.2V total)
LED Emitter: Premium Cree XP-G R5
Output: Maximum - 206 lumens; Moonlight - 0.2 lumens
Runtime: Maximum - 1.3 hours; Moonlight - 30 days
Strobe: Strobe, S.O.S., and Beacon flash modes
Specifications
Dimensions
Length: 147,3mm
Diameter: 21,8mm
Weight: 62g
Typical Output and Runtimes
Moonlight: 0.2 lumens, 30 days
Low: 4 lumens, 5 days
Medium: 22 lumens, 24 hours
High: 85 lumens, 5 hours
Max: 206 lumens, 1.3 hours
Strobe, 2.5 hours
Beacon, 18 hours
Operation
Operating your Quark AA-2 is simple. Make sure its batteries are inserted with the positive side (+) toward the head. Ensure the bezel (the 'head' of the light) and tailcap are tightened, then depress the tailcap button fully so that it 'clicks' and the light turns on.
The two most commonly used modes are Max and Moonlight, the highest and lowest modes. To access Max, you simply tighten the bezel. To access Moonlight, you just loosen the bezel a half-turn. That's it. Give it a try now by cycling back and forth between Max and Moonlight.
You can also cycle through the Quark's other modes just as easily. Lightly depress the button momentarily (you don't need to 'click' it off) and the output will switch to the next mode. The mode sequence is determined by whether the bezel is tightened or loosened:
Loosened Bezel: Moonlight -> Low -> Medium -> High -> SOS -> Beacon
Tightened Bezel: Max -> Strobe
Once the Quark has been turned off for at least three seconds, it will revert to the first level of output in the sequence, either Moonlight or Max.

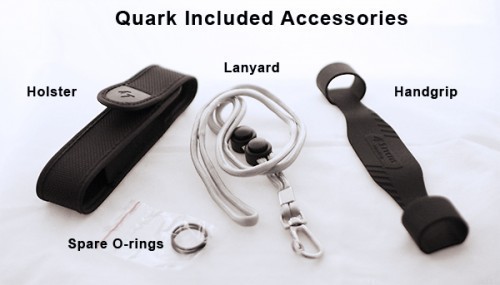

Verpackung und Lieferumfang im Video!
