Model No.: G42 XM-L
Version:V1
Key Words:
1/.CREE XM-L series LED,3CT optional: Cool White, Neutral White, Warm White.
2/. Integral Design of head and body to:
Greatly improve the ability of Radiating,Waterproof and Dust-proof.
Prevent accident loosen the head-cap while change the battery.
3/.Finished:Military Spec. Type III Hard-Anodized Al-Alloy Construction; GunGrey.
4/.XENO unique Belt Clip:
High powered & flexibility enhanced Belt Clip with 3D designing
Approved by 96 hours Salt Spray Test, as same as SF,USA.
1. Features:
1/. 5 Metals in XENOG42V1:
1//.Gold:Double Spring between anode “+” and cathode “-” of the battery for shock proof.
Both spring are Gold-Electroplate.

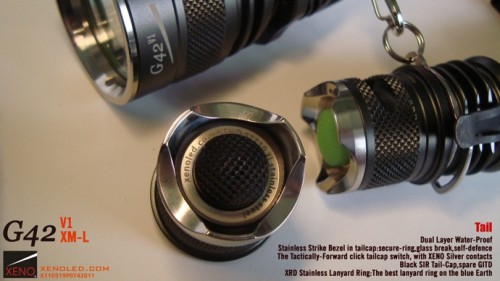

2//.Silver: The tactically-forward click tailcap switch, with XENO Silver contacts.
Support tail-standing ability.
3//.Brass:Full brass parts of electric-access with silver, gold assistant.
4//.Stainless steel:
XENO STT10:stainless Strike Bezel in tailcap:secure-ring,glass break,self-defence.
XENO RG42:stainless Secure-Ring for Window(Lens)-better look & headcap protected.
XENO XRD:stainless lanyard ring,The best lanyard ring on the blue Earth.
5//.SpringSteel:XENO high powered & flexibility enhanced Pocket Clip with 3D designing.
2/. Built in XENODD2u Engine:
Linear LED driver, Not PWM mode.
Non-Flickering and Absolutely Noiseless even at Ultra-Low level.
With Ultra-Low output, more than 100 hrs burning time.
XENO unique Quiet RSL™ technology.
XENO unique GFC(Gamble Free Concept) impact-resistant technology.
Rated Input:DC3.0~6V;
Battery:Use 18650*1 Li-ion rechargeable battery or CR123A*2
Built-in battery inverted-load protection.
Built-in battery overdischarge protection.
3-Stage Variable Output: High, Low, Ultra Low
High level always the start level and reset to start level after 3s power-off.
Max Output: 505lms@2000mA(OTF, full high level)
Max Burning Time:100 hours@20mA(Ultra-Low level)
5/.Reflector:XENO R42X precision aluminum long-throw reflector, SMO.
6/.XENO unique design: Singular Arc for FingerRestTM, XENO Gene 2011.
7/.Water proof:IPX-8; 10 meters dunk-resistance.
8/.Window(Lens):
High quality toughened mineral-glass lens, precision polish the edge for impact-resistant.
9/. Enclosed XENO Genuine Accessory System:
XENO STT10:stainless Strike Bezel in tailcap:secure-ring,glass break,self-defence.
XENO RG42 Stainless Secure-Ring for Window(Lens).
XENO LS10E Enhanced Lanyard System,with XENO XRD-the best Lanyard Ring on the blue earth.
XENO L01 Nylon Cord Wrist Lanyard
2. Specifications

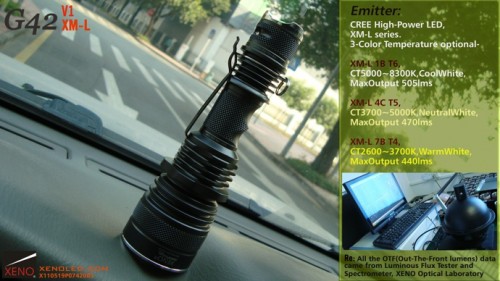

1/.Emitter: CREE High-Power LED,XM-L series. 3-Color Temperature optional:
XM-L 1B T6,Color Temperature 5000~8300K,CoolWhite,MaxOutput505lms OR
XM-L 4C T5,Color Temperature 3700~5000K,NeutralWhite,MaxOutput470lms OR
XM-L 7B T4,Color Temperature 2600~3700K,WarmWhite,MaxOutput440lms
2/.Output(OTF)& Burning Time*(CW version):3-stage variable output
High(2000mA/OTF505lms/1.1hrs),
Low(650mA/OTF193lms/4hrs),
Ultra Low(20mA/OTF45lms/100hrs)
*The experience result will be a little different for the battery of different brand, condition etc.
3.Size & Weight:
Size: length 6.3’’(160mm), Ø1.8’’(Ø46.5mm,bezel).
N.W.: 9 oz(28=256g,battery not included).
Packing:XENO GP42 gift box;
Size:L187*W76*H64.5mm;
G-Weight: 15 oz (426g).
